  • Metal bond mounted wheels for machining of hard and brittle materials
    Metal bond mounted wheels for machining of hard and brittle materials 画像
    Diamond metal bond wheels with spindle are specially designed for machining hard and brittle materials.
    We offer the most suitable bond specifications for various materials in the grinding process of hard and brittle materials using a machining/gliding center.
    The metal bond wheel has high abrasive grain retention and high sharpness even when machining hard materials. It also has good thermal conductivity, which prevents heat buildup at the machining point and prevents thermal cracking of brittle materials. The tool life is longer than that of electrodeposition tools with a single diamond layer, and it is the best tool for machining ceramics, especially hard SiC and aluminum nitride.
    In the machining of quartz glass, the optimum bond selection ensures high grinding durability.
  • “DEX” diamond wheels for forming difficult-to-cut materials
    “DEX” diamond wheels for forming difficult-to-cut materials 画像
    These wheels are designed for high shape precision forming of, for example, motor cores. Wheels of the most appropriate specifications are available for not only magnetic materials such as neodymium-iron, but also for ferrites, ceramics and glass.
  • Mono-crystal diamond ultrafine cutting tool
    Mono-crystal diamond ultrafine cutting tool 画像
    These mono-crystal diamond bites have fine cutting edges made of single-crystal diamonds, which have excellent wear resistance and can make the edges very sharp. By using single-crystal diamond microbites, a cutting edge controlled in micrometers (μm) is transferred to a workpiece, and a fine groove pattern can be formed with high precision and a continuous pitch.

    [Typical applications of mono-crystal diamond ultrafine cutting tool]

    Machining of optical films for FPDs and precision molds for optical elements Micro-pattern forming and planer machining Machining of diffraction gratings Other MEMS and bio-related micro-pattern machining
  • Mono-crystal diamond cutting tools / MCD bites
    Mono-crystal diamond cutting tools / MCD bites 画像
    We have over 80 years of experience in manufacturing single-crystal diamond bites for cutting processes and have supplied tools for precision machining applications periodically.
    By grinding Mono Crystal Diamond (MCD), the hardest material on earth, to a sharp cutting edge, mirror-finish machining is possible in cutting that cannot be obtained with ordinary cemented carbide or PCD (polycrystalline diamond) bites.
    The extremely sharp cutting edge can be applied to soft and viscous gold and copper alloys that would be scuffed or crushed by ordinary cutting bites, and a good cutting surface can be obtained.
    When cutting acrylic resin, a transparent cutting surface can be obtained without the need for polishing.

    We custom-design the optimum specifications to meet your machining requirements and tool geometry. Various insert tip types are also available.
  • “Hi-PAX” PCD/PCBN cutting tools

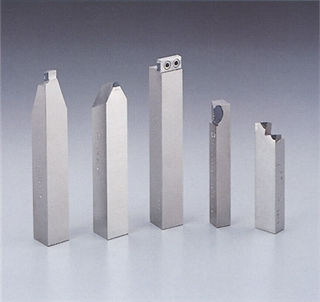

    “Hi-PAX” PCD/PCBN cutting tools 画像
    These cutting tools are used for precision machining of mass production parts. The PCD (polycrystalline diamond) tool is used for machining ceramics, plastics, and non-ferrous metals while the PCBN (polycrystalline CBN) tool is used for high-hardness alloy tool steels and difficult-to-cut nickel alloys. These tools possess finer cutting
    surfaces than other cemented carbide / tungsten carbide tools and can last up to ten times longer.
  • CBN cutting wheels
    CBN cutting wheels 画像
    These high-efficiency cutting wheels are suitable for high-quality cutting of rare earth magnets such as neodymium magnets and iron-based materials. Their high cutting performance improves cutting surface quality and hence work quality.
  • Diamond polishing products / Diamond slurry

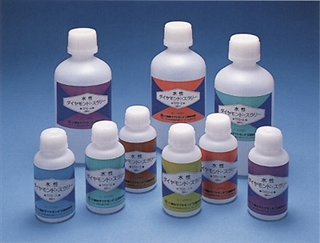

    Diamond polishing products / Diamond slurry 画像
    These products are used for lapping and polishing high-hardness materials such as glass, ceramics, ferrites, sapphires, and cemented carbide / tungsten carbide when high-precision surface finishing is required. Highly precise diamond powder is used for slurry products.
