About diamond & cBN

About diamond & cBN

Diamond is a mineral composed of carbon and is the hardest natural substance. In kanji it is written as "金剛石" (Kongoseki). The unit of quantity is carat (ct), which is the weight unit of gemstones. One carat is 0.2 grams.

In the latter half of the 20th century, synthetic diamonds were produced, and many of the diamonds used for industrial purposes today are synthetic. We offer tools that use synthetic and natural diamonds making use of the each characteristic.

In the machining of metal materials, especially iron-based materials, the carbon of diamond diffuses and permeates the iron structure in the material, and diamond, which is supposed to be hard, wears out unexpectedly quickly. Therefore, diamond tools are not suitable for machining iron-based materials.
The next hardest material after diamond is cBN (an acronym for cubic Boron Nitride, written as "CBN" in product names), a compound that does not exist naturally. It is inferior to diamond in terms of hardness at room temperature, but since it does not contain carbon, it is suitable for processing iron-based materials. By using diamond and cBN differently depending on the material to be processed, it is possible to achieve machining that makes the most of their respective features.

About grinding process & tools

About grinding process & tools

Grinding process

Grinding is a type of removal process in which a wheel composed of abrasive grains and binders is rotated at high speed, and each randomly arranged abrasive grain acts as a cutting edge to remove a very small amount of material from the surface of the work material.
Grinding tools that use diamond or cBN as the abrasive grain are called "super abrasive wheels."
Since a large number of hard and fine blades are used, high quality machining of hard materials can be achieved.

In the process of grinding, abrasive grains are generally worn away and fall off (in some cases due to the self-generated cutting edge effect), and chips (shavings of the work material) are discharged.
Grinding fluid removes the heat generated by machining to cool down the work material, reduces the heat generation by improving the lubrication between the grinding wheel and the work material, and promotes the discharging of chips.

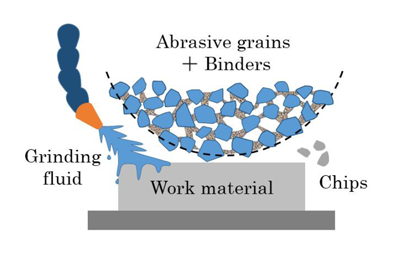

Image of grinding process and wheel structure

Image of grinding process and wheel structure

Types of grinding tools

There are two types of grinding tools depending on the position of the working surface of the abrasive grain layer: straight wheels (the working surface of the abrasive grain layer is on the periphery) and cup wheels (the working surface is on the end). In addition, there are the following types according to shape and application.

- Straight type: Centerless wheels (used on centerless machines), V-face wheels (with a V-shaped abrasive grain layer), multi-wheels (with several wheels combined), thread grinding wheels (with threaded outer circumference of wheels used on centerless machines), centering wheels (used for centering of lenses, etc.), ball grinding wheels (used for roughing of lenses, etc.)
- Cup type: 6A7S wheels (wheels with chips or pellets), double-headed wheels (a set of two wheels used in double-disc grinders)
- Deformed wheels (wheels with specially shaped abrasive grain layers, such as rounded or grooved abrasive grain layers): Beveling wheels (used for beveling semiconductor wafers and thin sheet glass), notching wheels (used for notching semiconductor wafers), etc.
- Cutting and grooving wheels: Rim saws, segment saws, multi saws, slicing saws
- Others: Small diameter mounted wheels, core drills

Types of grinding methods

Types of grinding methods
  • Cylindrical grinding

    This is the machining in which a cylindrical grinding machine or universal grinding machine is used to grind the periphery of a cylindrical work material with a rotating wheel. Depending on the direction in which the grinding wheel grinds the work material, there are two types of grinding: plunge grinding (grinding while moving the wheel or work material in the radial direction of the wheel) and traverse grinding (grinding while moving the wheel parallel to the work material's axial direction).

    Depending on the relationship between the direction of rotation of the grinding wheel and the direction of movement of the work material, the cylindrical grinding can be classified as up-cutting and down-cutting.

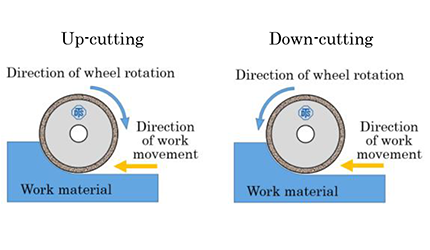

    Up-cutting: A grinding method in which the direction of rotation of the grinding wheel and the direction of movement of the workpiece are the same. The contact area between the grinding wheel and the work material is large, and efficient machining can be performed. Since the load on the grinding wheel is large and grinding resistance is also large, wear and tear is relatively large. It is a method of machining in which the chips are scooped upward from the bottom while being ejected outward.
    Down-cutting: A grinding method in which the direction of rotation of the grinding wheel and the direction of movement of the work material are reversed. When the grinding wheel cuts the work material, it moves as if it is digging into the material while wrapping the chips inward.

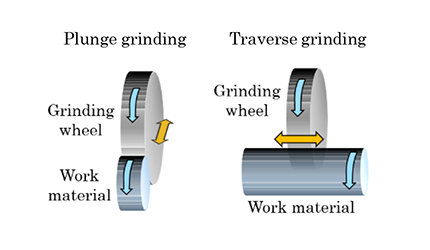

    プランジ研削 トラバース研削
    アップカット ダウンカット
  • Internal grinding

    A grinding method in which an internal grinding machine is used to grind the internal surface of a cylindrical work material with a rotating wheel. There are two types of internal grinding: the workpiece-rotating type, in which the work material is rotated to be processed while the grinding wheel is fed rotating, and the planetary type, in which the work material is fixed and the grinding wheel is fed while rotating and orbiting.
    The planetary grinding method is suitable for machining heavy or complex-shaped work materials. Similar to cylindrical grinding, there are also traverse grinding and plunge grinding.

  • Centerless grinding

    A centerless grinding machine is used. In this machining, the periphery of a rotating cylindrical work material is ground using three parts: a fixed blade (support blade), a grinding wheel, and a rotating regulating wheel, without drilling a center hole in the work material.
    Since the work material is not held or fixed in place by a chuck or other device, there is no mounting or dismounting process, which results in higher productivity.

    Through-feed grinding is a grinding method in which the grinding wheel and the regulating wheel are spaced at regular intervals and the work material is passed between them, making it suitable for mass production processing. The regulating wheel is slightly tilted and the rotated work material is fed axially.
    Other types of grinding include in-feed grinding, end-feed grinding, and tangential grinding.

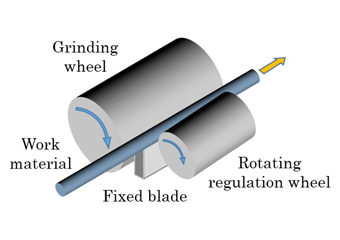

    Centerless grinding
  • Plane grinding

    Using a plane grinder, the work material fixed on the table is pressed against a wheel rotating at high speed, and the surface is machined little by little. This process is used to adjust the thickness of the work material or to improve its flatness.
    There are various grinding methods depending on the combination of the direction of the grinding wheel axis (vertical/horizontal axis) and the table shape (square table/circular table).

    Profile grinding (copy grinding, projection grinding)

    A grinding method in which the shape of the product is enlarged and a projection drawing called a chart is drawn, projected optically onto a projector. The work material and chart are superimposed and the part that protrudes from the chart is removed.
    This method is employed for the machining of tapers, groove widths, groove depths, convex radius, concave radius, etc. that require high precision.

  • Gear grinding

    A method of grinding and shaping the tooth surface of gears and other components using a gear grinding machine.

    Screw grinding

    A grinding method that uses a thread grinder to form threads.

  • Tool grinding

    A grinding method that uses a specific grinding machine depending on the type of tool to be machined. It includes the following tool grinding machines: Drill grinder, hob grinder, front slice grinder, ultra-hard carbide grinder, broach grinder, shaving cutter grinder, saw blade grinder.

Identification system for wheels

Identification system for wheels

Identification example

  • SDC

    Abrasive
    type

  • 200

    Abrasive
    size

  • N

    Binding
    degree

  • 100

    Abrasive
    concentration

  • BDH

    Bond
    type

  • 3.0

    Abrasive layer
    thickness (mm)

Abrasive type

Indication Abrasive type
D Natural diamond
SD Synthetic diamond
SDC Synthetic diamond with metal coating
BN(cBN) Cubic boron nitride
BNC(CBNC) Cubic boron nitride with metal coating

A selection of abrasive grains for each material

Abrasive grains Work materials
Diamond Used for hard brittle materials such as glass, ceramics, silicon, ferrites, cemented carbide, quartz, and rock materials
cBN Used for nickel alloys, and heat-resistant alloys, and hardened steels

Abrasive size

Abrasive size class Size indication Mesh size Average size* (μm)
Mesh size 60 #60/#80 250
80 #80/#100 177
100 #100/#120 149
120 #120/#140 125
140 #140/#170 105
170 #170/#200 88
200 #200/#230 74
230 #230/#270 62
270 #270/#325 53
325 #325/#400 44
Micron size 400   37
600   30
800   20
1000   15
1200   13
1500   10
2000   8
* Reference only. The figures for mesh size abrasives show grid size.
* How to calculate (rough estimate of) average abrasive diameter D(average abrasive diameter μm) = 15000/(abrasive size)

Binding degree

Indication Bond hardness
A Softer

N Standard

Z Harder
Insufficient gripping force causes shedding and large wheel abrasion. Excessive gripping force causes glazing.

Abrasive concentration

Indication Volume fraction(vol%)
200 50.0%
175 43.8%
150 37.5%
125 31.3%
100 25.0%
75 18.8%
50 12.5%
This indicates how many abrasive grains are contained in the abrasive layer.
The indication of concentration is set to 100, which corresponds to the volume fraction of 25%(vol%). (Approx. 4.4ct/㎝³ in case of diamond grain * 1ct(carat)=0.2g)

Types & characteristics of bonds

Types & characteristics of bonds
  • Metal bond

    - Bonds that are powder sintered together with metal powders under strict temperature and atmosphere control.
    - Excellent heat dissipation, high retention of abrasive grains, and excellent wear resistance.
    - Metal bond can be used to produce form-grinding wheels that enable highly precise shaping using our unique machining technology and has high shape retention performance.

  • Resin bond

    - Thermosetting resin is the main component of this bond, and various fillers are available to meet a wide range of demands.
    - Excellent sharpness and high-quality machining of mirror surface and others.
    - Capable of producing complex shaped form-grinding wheels.

  • Vitrified bond

    - A bond with glassy inorganic material, available in porous and non-porous types.
    - Excellent sharpness and self-sharpening under high load conditions by taking advantage of its hard and brittle properties.
    - High flexibility in controlling the concentration of abrasive grains and porosity.

  • Electroplated

    - With a unique plating method, electrodeposition adheres abrasive grains with nickel plating.
    - Overwhelmingly higher abrasive grain density compared to sintered bond wheels.
    - The amount of protruding abrasive grains can be controlled, resulting in sharp and efficient grinding.
    - Strong retention of abrasive grains with little dropout.
    - Capable of manufacturing form-grinding wheels that can be used with various types of base metal.

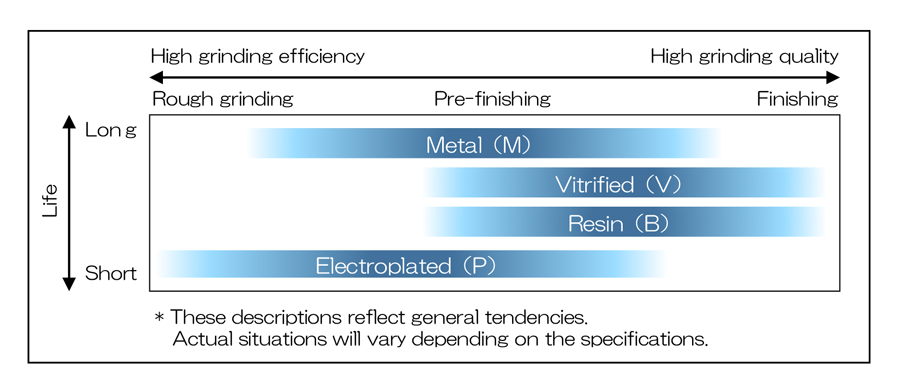

  • Reference of bond selection

    ボンド選択の目安

Overview of wheel shapes

Overview of wheel shapes

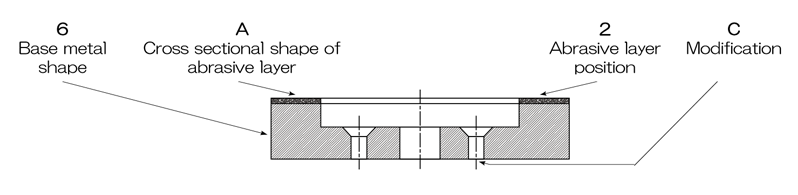

  • Wheel shape example breakdown (In case of 6A2C)

    Wheel shape example breakdown (In case of 6A2C)
  • Standard base metal shapes

    Standard base metal shapes
  • Abrasive layer shape cross sections

    Abrasive layer shape cross sections

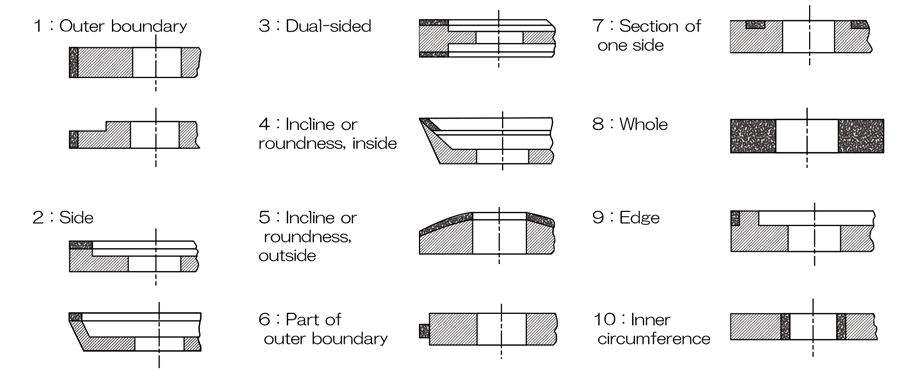

  • Abrasive layer position

    Abrasive layer position

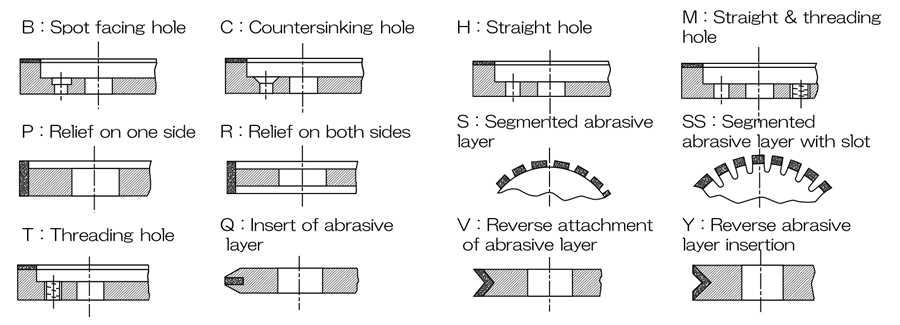

  • Modifications

    Modifications
  • Designator of standard wheel shapes (Cup type)

    Designator Wheel shape
    6A2

    Plan cup

    6A2 Plan cup
    6A9

    Corner cup

    6A9 Corner cup
    9A3

    Dual-sided cup

    9A3 Dual-sided cup
    4A2

    Dish

    4A2 Dish
    4C9

    Dish

    4C9 Dish
    11A2

    Flair cup

    11A2 Flair cup
    11V9

    Flair cup (Corner with angle)

    11V9 Flair cup (Corner with angle)
    11C9

    Flair cup (L-shape)

    11C9 Flair cup (L-shape)
    Designator Wheel shape
    11Y9

    Flair cup (L-shape with angle)

    11Y9 Flair cup (L-shape with angle)
    11B2

    Flair cup (with angle)

    11B2 Flair cup (with angle)
    12A2

    Dish

    12A2 Dish
    12V9

    Dish (Corner with angle)

    12V9 Dish (Corner with angle)
    12C9

    Dish (L-shape)

    12C9 Dish (L-shape)
    12V4

    Dish (inward slant)

    12V4 Dish (inward slant)
    12V5

    Dish (outward slant)

    12V5 Dish (outward slant)
  • Designator of standard wheel shapes
    (Straight type)

    Designator Wheel shape
    1A1

    Straight

    1A1 Straight
    3A1

    Straight with single-side boss

    3A1 Straight with single-side boss
    14A1

    Straight with dual-side boss

    14A1 Straight with dual-side boss
    6A1

    Straight

    6A1 Straight
    9U1

    U-shaped straight

    9U1 U-shaped straight
    1L1

    Straight with chip breaker

    1L1 Straight with chip breaker
    Designator Wheel shape
    1FF1

    Straight with R

    1FF1 Straight with R
    1F1

    Straight with R

    1F1 Straight with R
    1V1

    Straight with angle

    1V1 Straight with angle
    1B1

    Straight with angle

    1B1 Straight with angle
    1EE1

    V face

    1EE1 V face
    1E1

    V face

    1E1 V face

About truing & dressing

About truing & dressing

What is truing & dressing ?

Truing is the process of removing runout and correcting the shape of the wheel's surface.
Dressing is the process of removing clogged or crushed grinding wheel surfaces to produce new sharp cutting edges or adjust the amount of protrusion of the new edge, which is essential for effective grinding.

It is necessary to select a truing/dressing method that is appropriate for the conditions of the tool, such as clogging, crushing, or spilling, and to select dressing conditions that are appropriate for the machining accuracy of the work material.
