Diamond / CBN mounted wheels
These wheels are used for the internal grinding of precision parts and precision machining of glass, ceramics, carbon, ferrite, and precious stones. We provide wheels with the most suitable bond and specifications for the work material and application.
Metal bonds are ideal for machining hard and brittle materials. It is especially suitable for machining fine ceramics such as silicon carbide (SiC), aluminum nitride (AlN), silicon nitride (SiN), and quartz glass.
The electrodeposition bond has good sharpness and versatility, and can be used not only for hard and brittle materials but also for carbon, ferrite, MMC materials, FRP, and cemented carbide.
Resin bond is used for the purpose of reducing damage such as chipping of the workpiece and for finishing processes that require surface roughness.
It is also possible to manufacture wheels with spindles with an outer diameter of φ100 or larger by joining a straight wheel or cup wheel to the spindle. Please consult with us for such products.
Metal bonds are ideal for machining hard and brittle materials. It is especially suitable for machining fine ceramics such as silicon carbide (SiC), aluminum nitride (AlN), silicon nitride (SiN), and quartz glass.
The electrodeposition bond has good sharpness and versatility, and can be used not only for hard and brittle materials but also for carbon, ferrite, MMC materials, FRP, and cemented carbide.
Resin bond is used for the purpose of reducing damage such as chipping of the workpiece and for finishing processes that require surface roughness.
It is also possible to manufacture wheels with spindles with an outer diameter of φ100 or larger by joining a straight wheel or cup wheel to the spindle. Please consult with us for such products.
Straight / Cup mounted wheels image

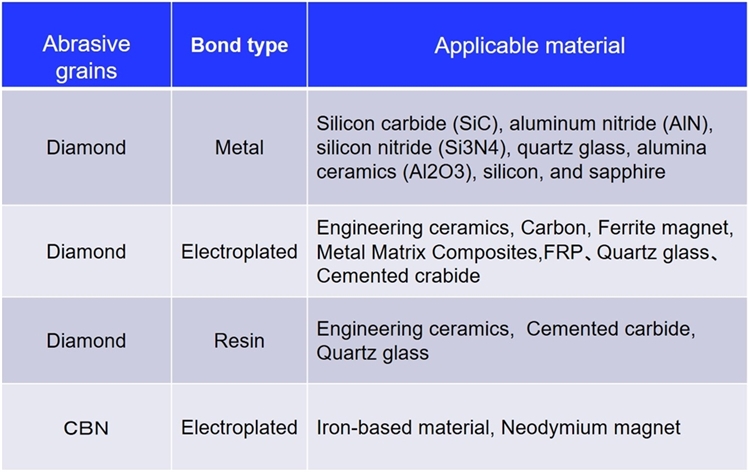

Applicable Materials for Diamond / CBN Mounted Wheels
Bond for Mounted Wheels
Metal bond、Resin bond、Electroplated
